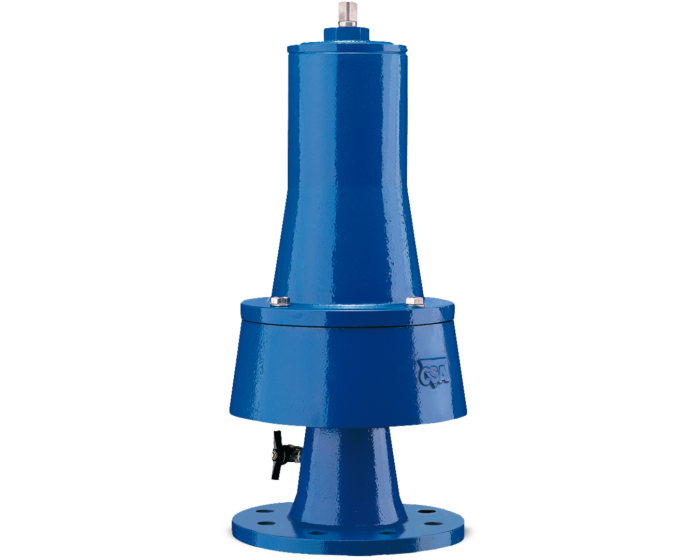

The fast acting spring loaded relief valve PN10/16 or PN25 ensures quick pressure relief in high-pressure systems. Its spring-loaded mechanism provides reliable protection against overpressure in various applications.
| Specification | Value |
|---|---|
| Construction standard | EN 1074-4 |
| Pressure range | 0 / 8 Bar |
| Application | Protection of the drinking water network |
| DN | 50/65 |
| Fluid | Cold water |
| Body material | Ductile iron |
| PS (bar) | 8 |
| Connections | Flanged PN10/16 |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Warranty period | 2 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Flanged PN10/16 50/65 0 / 8 Bar | 3180065 | S1010557 |
€1,037.51
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN10/16 50/65 8 / 16 Bar | 3180066 | S1010558 |
€1,039.29
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN25 50/65 16 / 25 Bar | 3180067 | S1010559 |
€1,088.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN10/16 80/100 0 / 8 Bar | 3180100 | S1010560 |
€1,754.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN10/16 80/100 8 / 16 Bar | 3180101 | S1010561 |
€1,874.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN25 80/100 8 / 16 Bar | 3180102 | S1010562 |
€1,840.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN25 80/100 16 / 25 Bar | 3180103 | S1010563 |
€1,863.99
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN10/16 0 / 8 Bar | 3180150 | S1010564 |
€5,285.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN10/16 8 / 16 Bar | 3180151 | S1010565 |
€5,302.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN25 8 / 16 Bar | 3180152 | S1010566 |
€5,779.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN25 16 / 25 Bar | 3180153 | S1010567 |
€5,799.41
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN10 0 / 8 Bar | 3180200 | S1010568 |
€5,819.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN16 0 / 8 Bar | 3180201 | S1010569 |
€5,819.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN16 8 / 16 Bar | 3180202 | S1010570 |
€5,819.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN25 8 / 16 Bar | 3180203 | S1010571 |
€5,900.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN25 16 / 25 Bar | 3180204 | S1010572 |
€5,900.70
(excl. btw)
|
add to cart |
